PRODUCTS







Injection cylinders

Our production capacity covers all dimensions of the current market ranging from Ø12 to Ø260.

We produce spare parts for any machine and model.

We incorporate the new design and material technologies.

We design equipments with special diameter and length adapted to customer needs.





Extrusion cylinders

Our production capacity of single screw cylinders for extrusion covers all dimensions of the market, up to Ø400, with the length required for each case.

We produce spare parts for any machine and model.

We incorporate the new design and material technologies.

We design equipments with special diameter and length adapted to customer needs.

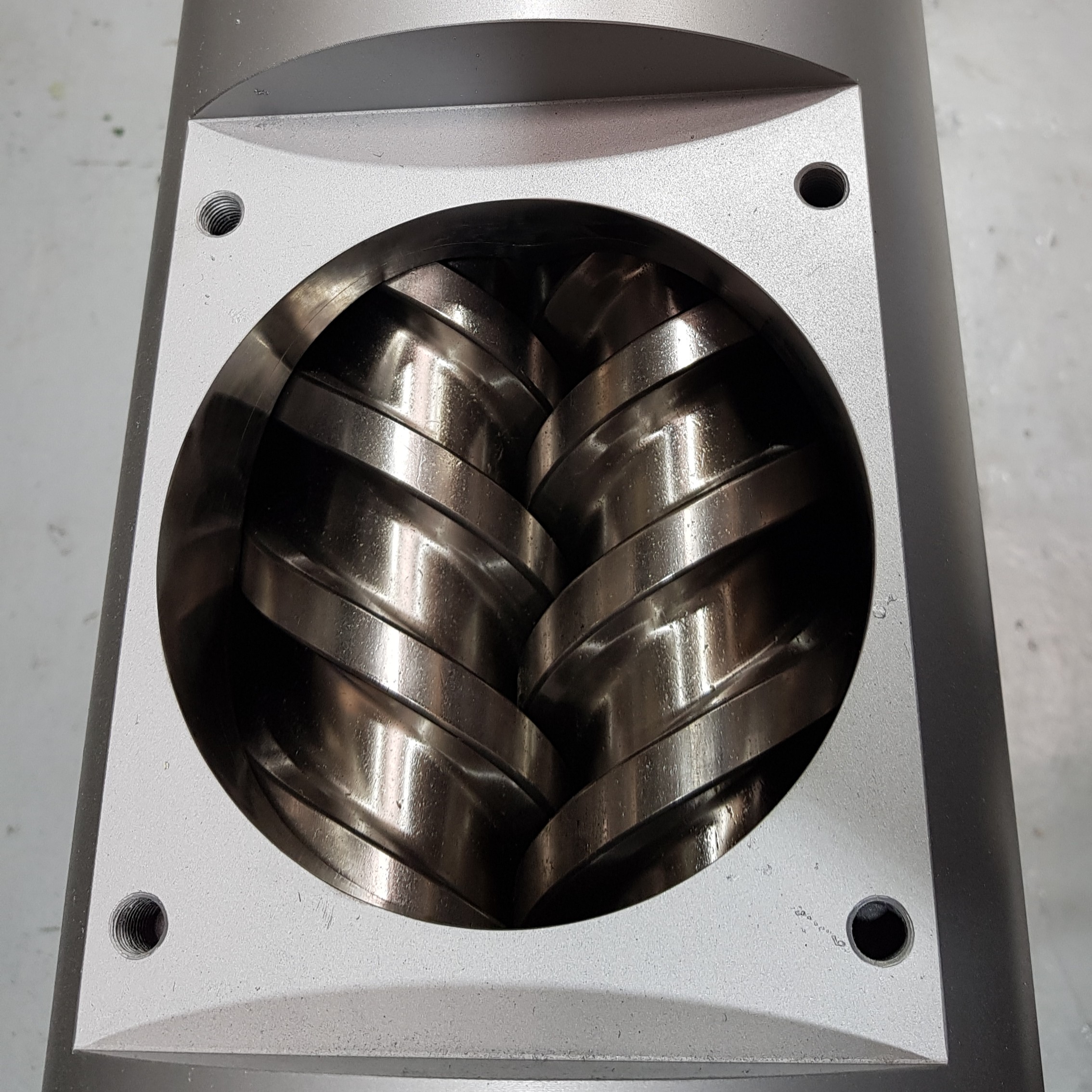

Twin parallel screw cylinders for extrusion

We manufacture spare parts for any type of twin parallel extruders, covering all dimensions and lengths of the market ranging from Ø30 to Ø200. We provide advice to our customer on the best type of design and thermal treatment for each particular case.

Given the high price of these components, we recommend the bimetal option with interchangeable sleeves, since it offers a much higher level of performance than the nitrided steel.



Due to the evolution of the materials to be processed, which use more and more additives and are further reinforced, these parts are subject to strong wear agents. Therefore, the medium-term profitability of a bimetal cylinder is particularly remarkable and its long-term profitability is spectacular.







Twin conical screw cylinders for extrusion

We manufacture spare parts of any size for any brands and models on the market.

Our 50 years of experience in manufacturing this type of twin conical screw cylinder endorse us in terms of quality and manufacturing requirements.

This type of cylinders are usually manufactured with nitriding steels. However, in individual cases they can be sleeved with steels that are more resistant to wear. The spare parts are less expensive in the event of subsequent replacement since they are manufactured with interchangeable sleeves.





Twin parallel modular screw cylinders

The manufacturing capacity of these modular cylinder segments ranges from Ø 30 m, to Ø 250 mm. The cylinder segments are usually manufactured with interchangeable inner sleeves. This reduces the cost of spare parts significantly when the cylinder is worn out.

The technology can be nitriding, hardening or BIMETAL, which is the most widely used.

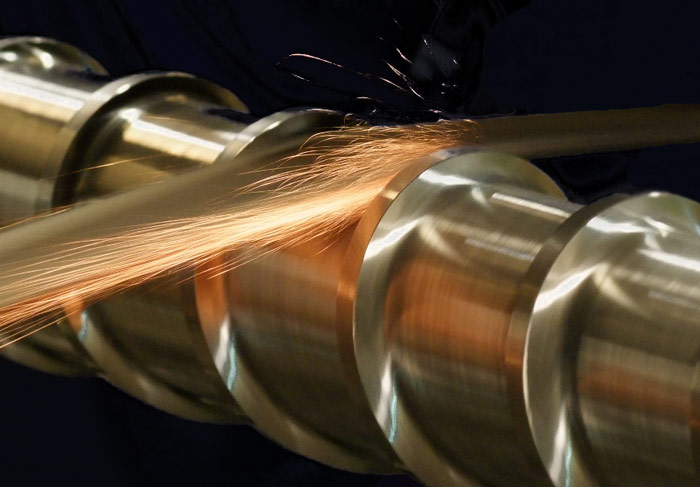

Injection screws

Our manufacturing capacity of injection screws ranges from Ø18 to Ø260 x 10.000mm.

We can manufacture any type of injection screws on the industrial sector with best type of steel, either NITRIDED, INTEGRAL HARDENED, CHROMED, STAINLESS or BIMETALLIC steels, and special alloys such as Inconel 625, Hastelloy C-276 and other appropriate solutions to meet every need.



We provide advice and design the most appropriate screw model according to your needs, or in order to solve frequent problems such as, for example, the need to reduce cycle times, improve plastification, improve life screw, reduce premature wears, removal of spots or black points caused by polymer degradation, etc.

We recommend you our ULTRAMELT screw for injection, which can solve all problems outlined above.

We offer further screw models suitable for every need. We can carry out a study if you return us duly completed a form provided on request.





Extrusion screws

Our manufacturing capacity of extrusion screws ranges from Ø18 to Ø400 x 10.000mm.

We manufacture any screw model on the industrial sector, either for thermoplastics, rubber or bakelite processing, food industry and chemical industry, etc.

We use the best type of steel appropriate for each application, either NITRIDED, INTEGRAL HARDENED, CHROMED, STAINLESS or BIMETALLIC steels, and special alloys such as Inconel 625, Hastelloy C-276, etc.

We provide advice and design the most appropriate screw model for each product, by looking for alternatives to solve a problem or increase production.

The problem of premature wear is usually attributed to the material quality of the screw. Obviously, both facts are connected, but wear reduction is directly linked to the screw design. For that reason, if we act on the design and improve the material used, the results can be extraordinary.

We can carry out a study of an improved screw, if required. You just have to return us duly completed a form provided on request.





Twin parallel counter-rotating screw

Our manufacturing capacity of twin parallel screws ranges from Ø30 (the smallest one) to Ø200, and we are open to considering further possibilities and dimensions.

Our machinery has the best current technology for manufacturing this type of screws. It can carry out perfect variable steps and a strict “GAP” control between both twin parallel screws.

We solve problems of premature wears on cylinders and screws by implementing new concepts on the design.

We can apply all technologies of the market regarding the qualities of manufacturing.





Twin conical screw

We have capacity and experience in manufacturing ALL dimensions of twin conical screws existing in the international market.

Our machinery has the latest technology for manufacturing this type of screws. It can carry out perfect variable steps and a strict “GAP” control between bottom and flank of both screws.

We help solving premature wears on cylinders and screws by implementing new design concepts.

As in twin parallel screws, we can manufacture all technologies of the market in terms of quality of the manufacturing materials.

Our latest innovation has been the development of a technology, which is able to transform a used monobloc conical cylinder into a new cylinder with original measures and interchangeable inner sleeves. In this way, the sleeves can be built with high-resistance materials, so that a replacement is very cost-effective.

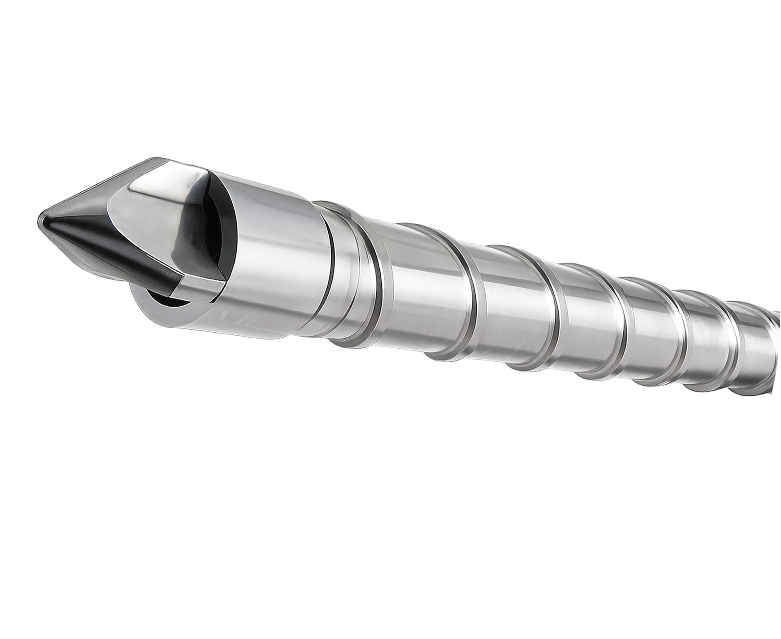

Check valves and end caps





We manufacture all kind of check valves according to customer quality specifications.We can provide guidance in order to improve design or materials used.

3-pieces valve in standard design, crenellated rotary valve, crenellated free rotary valve, ball valve with bronze lining, ball valve in hardened or nitrided steel, ball valve with hardened components.



In case of any problem such as irregular closing, inadequate maintenance of the bearing, material overheating, premature wears, adhesion of polymers, etc., we can provide guidance in order to find the best solution, always depending on the screw dimension.









Rollers

We are specialised in manufacturing all types of rollers for many different applications.

Plastic industries: solid rollers, hollow rollers, heated rollers, refrigerated rollers, mirror finish chromium plating applicable to calenders and Cast Film.

Textile industries: manufacturing of elastic rollers. Coating surfaces: wooly paper, cotton paper, raw cotton, cotton thread, gum/rubber, Stonite, Microrock, polyurethane.

Others:

  • Rollers for embossing and manufacturing serviettes and tablecloths.
  • Industrial embossing of plastic materials.
  • Rolling mill rollers for manufacturing rubber and similar ones.
  • Grinding of large dimensions up to Ø1850 x 6300mm and a total weight of 40 Tn (maximum length between points: 8.500mm)
  • Cylindrical and conical grinding.
  • Concave and convex grinding up tp 14mm.
  • Grinding and lapping of mirror finish hard chromium.
  • Verification and control of surfaces, roughness, hardness, crack detection, etc.
  • Manufacturing and repair of machinery related to rollers, calenders, embossers, rolling mills, etc.





Columns for injection moulding machines (construction / repair)

We manufacture all kind of injection moulding machines, with sizes up to 10.000mm in length and their appropriate diameter.

We normally start acquiring the appropriate processed steel for that application.

We manufacture the column, than we add a chromium plating to the board and apply a Tenifer® or sulfinized treatment on threads (mostly on the long thread in order to avoid seize-up of the captive nut).

There are some injection moulding machines with hardened columns by Nitriding. We can build and process them in our factory.

Broken columns are often repaired by means of joining the parts by welding until the centre and, afterwards, machining the end of the splicing area.

These repairs are frequently performed in order to run the injection machine for production while manufacturing the new column. But, interestingly, the repaired columns usually resist so long that the other three columns of the machine break before the repaired ones do it.

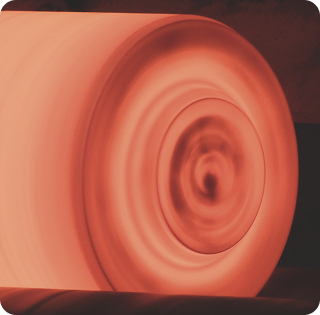

Bimetallic blanks

From gathering up the experience in over 40 years of manufacturing cylinders and screws, a total specialization in bimetallic barrels production has been achieved.

The entire manufacturing process is carried out in our factory, together with exhaustive controls that guarantee the high quality of the parts.

Constant investigation and development of bimetallic technology has led us to become the only company in Europe capable of casting all kinds of bimetallic alloys with a full guarantee: Iron, Iron/Chrome, Nickel, Nickel/Cobalt, all with high percentages of Tungsten Carbide for resistance against the maximum demands of abrasion and corrosion.
